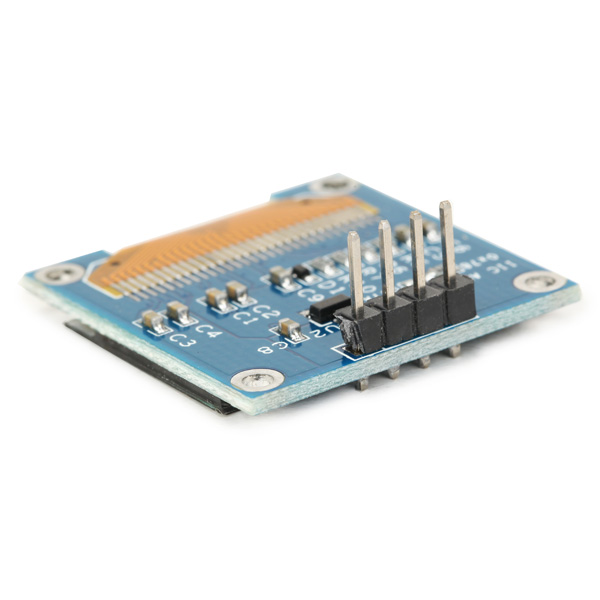

0.96 Inch 4Pin Blue Yellow IIC I2C OLED Display Module For Arduino
Interface: IIC/I2C
GND: Power Gound VCC: 2.2V-5.5V SCL: CLK clock (High level 2.2V-5.5V) SDA: MOSI data (High level 2.2V-5.5V)
Feature:
Color: Blue and Yellow LED Resolution: 128×64 Power: 0.06W Wide power supply range: DC 3V-5V Temperature: -30°C to 70°C Dimension: 29.28 x 27.1 mm (LW) Compatible with 3.3V and 5V control chip I / O level OLED internal drive chip: SSD136
0.96 Inch 4Pin Blue Yellow IIC I2C OLED Display Module For Arduino
Description
0.96 Inch 4Pin Blue Yellow IIC I2C OLED Display Module For Arduino
Interface: IIC/I2C
GND: Power Gound
VCC: 2.2V-5.5V
SCL: CLK clock (High level 2.2V-5.5V)
SDA: MOSI data (High level 2.2V-5.5V)
Feature:
Color: Blue and Yellow LED
Resolution: 128×64
Power: 0.06W
Wide power supply range: DC 3V-5V
Temperature: -30°C to 70°C
Dimension: 29.28 x 27.1 mm (LW)
Compatible with 3.3V and 5V control chip I / O level
OLED internal drive chip: SSD136
Package included:
1 x Blue and Yellow OLED display
