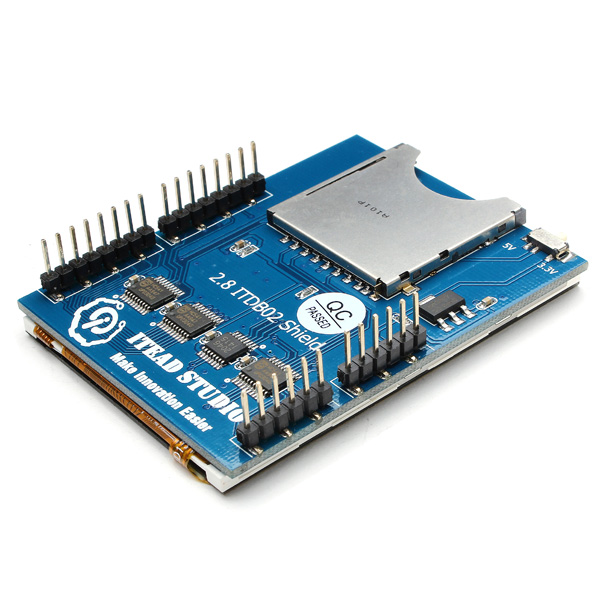

2.8 Inch TFT LCD Touch Screen Module UNO Expansion Board For Arduino

Beskrivelse

2.8 Inch TFT LCD Touch Screen Module UNO Expansion Board For Arduino

Feature:

This LCD touch screen board is a compatible Arduino UNO / Mega colorful TFT display with touch screen and SD card slot.
Arduino expansion board is compatible with the pin leads to connect accessories. TFT driver is based ILI9325DS with eight digit and four digit control interface.
Arduino 2.8 inch TFT LCD touch expansion board can work with 3.3V and 5V, so it can also be displayed on the CHIPKIT UNO32 and Simplecortex.

Description:

Compatible with Arduino UNO Rev3 / Mega expansion board pin
Support Arduino library UTFT
TFT Resolution: 240 x 320 pixels
Dimensions: 2.8 inch
Color: 265K
Backlight: LED
Voltage: 5V / 3.3V
LCD Interface: 16 bit parallel
Touch Panel: SPI

Here is the driver: Click here to open

Package included:

1 x 2.8 Inch TFT LCD Touch Screen
