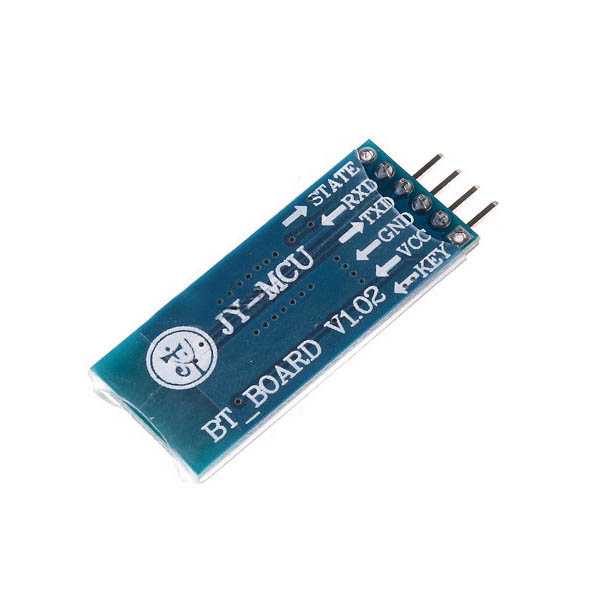

3Pcs HC-06 Wireless Bluetooth Transceiver Module Slave Serial Communication For Arduino

Description

3Pcs HC-06 Wireless Bluetooth Transceiver Module Slave Serial Communication For Arduino

Feature:

Module: HC-06 slave
Interface: VCC, GND, TXD, RXD(reserve LED status output pin, and MCU can judge the Bluetooth connection state through it)
3.3V LDO
Input voltage: 3.6V – 6V(never over 7V)
Input current: 30mA(unpaired) 10mA(paired)
Interface level: 3.3V(you can directly connect a variety of SCM 51, AVR, PIC, ARM, MSP430, etc. 5V microcontroller can also be directly connected without MAX232)
Effective distance: 10M(open area)
Communication format: 8 data bits / 1 stop bit / without parity
You can set the baud rate, name and pair password by AT commands when there is no bluetooth connection
This module is slave, it can be paired with computer, bluetooth master, mobile phone, PDA, PSP and so on
Size: 3.57 x 1.52cm

Note: This module does not suitable for IOS system.

Package included:

3 x HC-06 wireless bluetooth serial module
