3Pcs XR2206 Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ

Beskrivelse

Specifications:

Voltage supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz – 1MHz

SINE wave:

Amplitude: 0 – 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz – 100kHz

SQUARE wave:

Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)

TRIANGLE wave:

Amplitude: 0 – 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA

Instruction: Click to open

Package included:

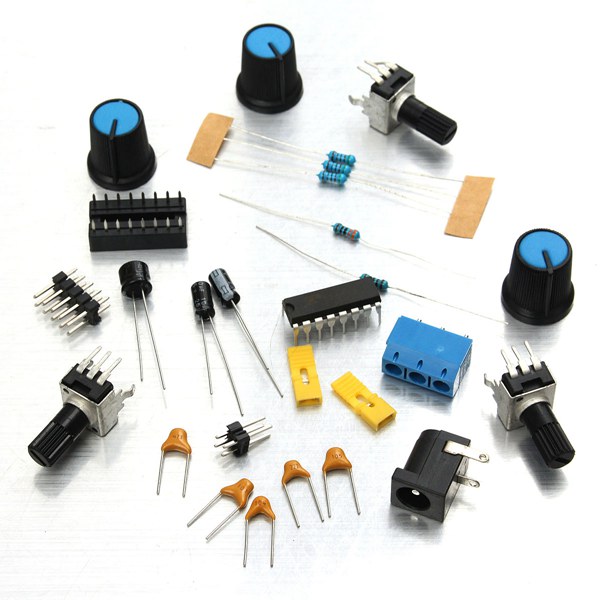

3 x XR2206 Function Signal Generator DIY Kit
