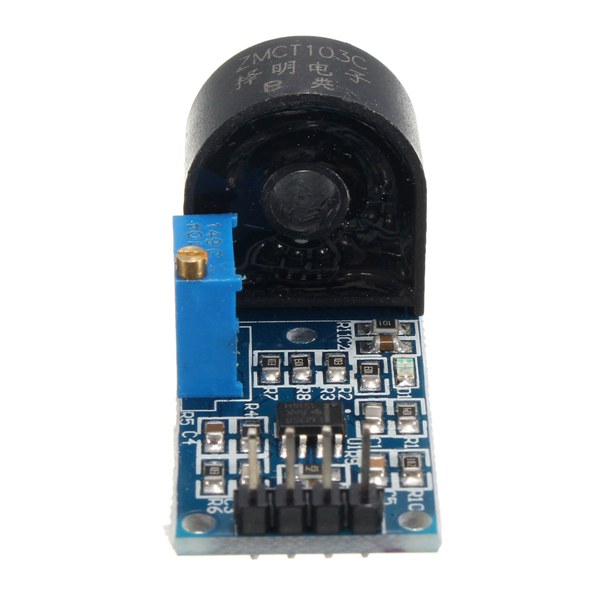

5A Monophase Active Output AC Current Transformer Module For Arduino

Beskrivelse

5A Monophase Active Output AC Current Transformer Module For Arduino

Features:

1, On-board precision micro-current transformer
2, On-board high-precision op-amp circuit, to do accurate sampling and appropriate compensation and other functions to signal
3, The module can measure AC current within 5A, corresponding output analog can be adjusted
4, Under ideal conditions, the input voltage VCC is 3-35V, according to the potentiometer (adjust the amplification ratio, amplification range 0-100 times) to adjust the required output voltage, but the output (OUT) of the maximum voltage does not exceed 1 / 2 VCC.
5, The output signal is the AC voltage signal, and the output signal voltage does not exceed the maximum 1 / 2VCC.
6, PCB board size: 38 (mm) x 18.5 (mm)

Specification:

Rated input current: 5A
Rated output current: 5mA
Change: 1000: 1
Phase difference (rated input): ≤20'(100Ω)
Linearity range: 0 ~ 10A (100Ω)
Linearity: 0.2%
Precision rating: 0.2
Isolation voltage uses: 3000V measurement
Sealing material: Epoxy resin
Operating temperature: -40 ° C to + 70 ° C

Package included:

1 x Current Transformer Module
