6-band HF SSB Shortwave Radio Transceiver Board DIY Kit

Description

6-band HF SSB Shortwave Radio Transceiver Board DIY Kit

Note:

This is a DIY kit, you need to have some knowledge of electronics and ability.
Need a lot of soldering, should have enough patience.
Soldering finished board for your reference only.

Feature:

3.5MHZ 7MHZ 10MHZ 14MHZ 21MHZ 29MHZ
6 Band Shortwave
Board size: 11 x 7cm (4.33inch x 2.76inch)

Building instruction: Click to open
Schematic: Click to open
SSB6.1-front-side: Click to open
SSB6.1-back-side: Click to open

Package included:

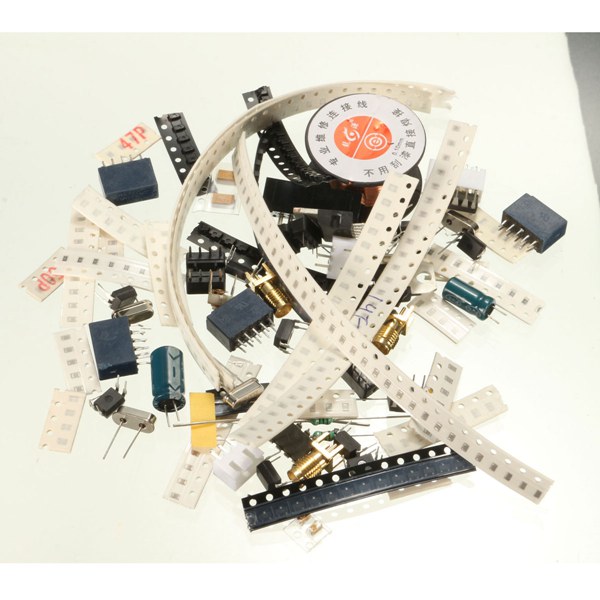

1 x 6 band transceiver board DIY kit
