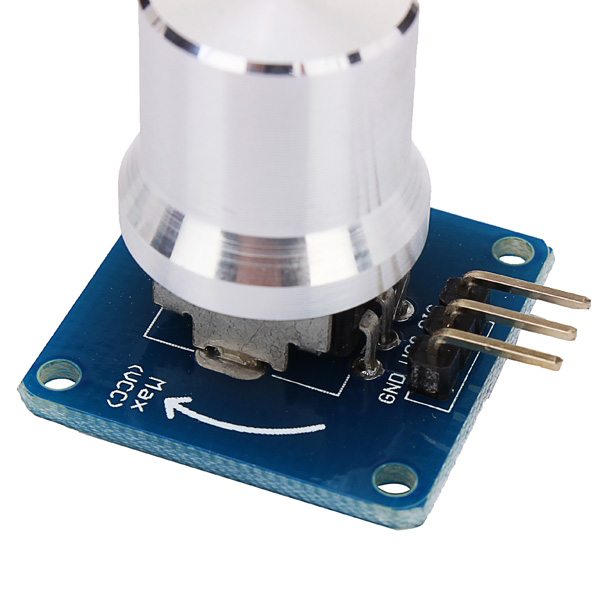

Adjustable Potentiometer Volume Control Knob Switch Rotary Angle Sensor Module For Arduino
Description:
Rotary Angle Sensor is based on the 10k the adjustable potentiometer knob Angle sensor module, the output is 0 ~ VCC simulation values, the output voltage will be as the potentiometer rotation Angle and linear changes. Apply to 3.3 V and 5 V of the SCM system, and the arduino board are compatible. Especially suitable for the volume regulator, such as lighting regulator DIY project
Feature:
Easy to use Electronic building blocks Interface Power supply is 3 ~ 5.5VDC 4 M2 screw positioning holes for easy installation
Parameter:
Item
Minimum
Typical Value
Maximum
Unit
VCC
3
5
5.5
V
VOUT
0
N/A
VCC
V
Rotation Angle
0
N/A
280
Deg
Size
24 x 29 x 27
mm
Weight
8
g
Interface:
Control Interface: GND to ground, VCC power supply, SIG is the signal output pin. Knob Potentiometer: 10K ohm linear adjustable potentiometer, add aluminum knob cap. Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, easy to install, implement the module combinations.
Adjustable Potentiometer Rotary Angle Sensor Module For Arduino
Description
Adjustable Potentiometer Volume Control Knob Switch Rotary Angle Sensor Module For Arduino
Description:
Rotary Angle Sensor is based on the 10k the adjustable potentiometer knob Angle sensor module, the output is 0 ~ VCC simulation values, the output voltage will be as the potentiometer rotation Angle and linear changes. Apply to 3.3 V and 5 V of the SCM system, and the arduino board are compatible. Especially suitable for the volume regulator, such as lighting regulator DIY project
Feature:
Easy to use
Electronic building blocks Interface
Power supply is 3 ~ 5.5VDC
4 M2 screw positioning holes for easy installation
Parameter:
Interface:
Control Interface: GND to ground, VCC power supply, SIG is the signal output pin.
Knob Potentiometer: 10K ohm linear adjustable potentiometer, add aluminum knob cap.
Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, easy to install, implement the module combinations.
http://img.banggood.com/file/products/20141126005847Rotary%20Angle%20Sensor%20Schematic.pdf
Package included:
1 x Rotary Angle Sensor
