CD4017 Voice Control LED Flashing Kit Electronic DIY Kit
Feature:
The circuit is easy to install, just need to correct welding, after completed soldering, you can normally use it. The microphone turn the external sound into a current signal, amplified by a transistor Q1 into the integrated circuit U1. U1 has 10 output terminal, respectively control an LED light tube. The volume and frequency of the sound control the brightness and the number of the light emitting brightness of the luminotron. The louder the sound, the brighter the LED, the more number of light.
Note:
We don't offer any manuals, only has schematic, please note about this before you buy it, sorry for the inconvenience.
CD4017 Voice Control LED Flashing Kit Electronic DIY Kit
Description
CD4017 Voice Control LED Flashing Kit Electronic DIY Kit
Feature:
The circuit is easy to install, just need to correct welding, after completed soldering, you can normally use it.
The microphone turn the external sound into a current signal, amplified by a transistor Q1 into the integrated circuit U1.
U1 has 10 output terminal, respectively control an LED light tube.
The volume and frequency of the sound control the brightness and the number of the light emitting brightness of the luminotron.
The louder the sound, the brighter the LED, the more number of light.
Note:
We don't offer any manuals, only has schematic, please note about this before you buy it, sorry for the inconvenience.
Package included:

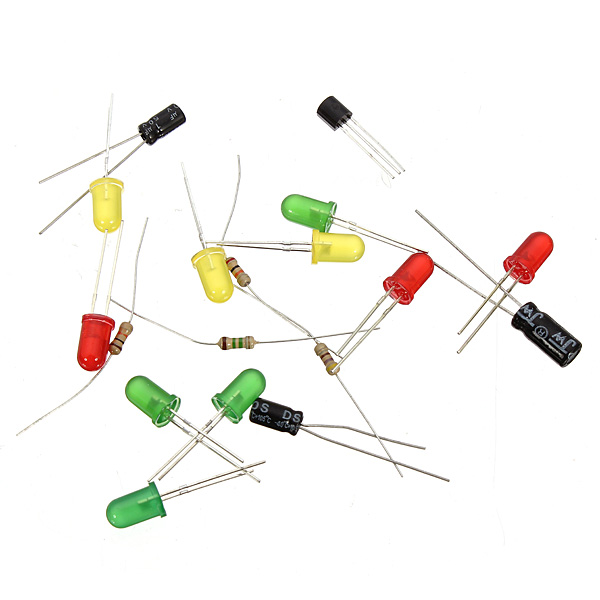

1 x CD4017 LED Kit
