NANO IO Shield Expansion Board + Nano V3 Improved Version With Cable For Arduino

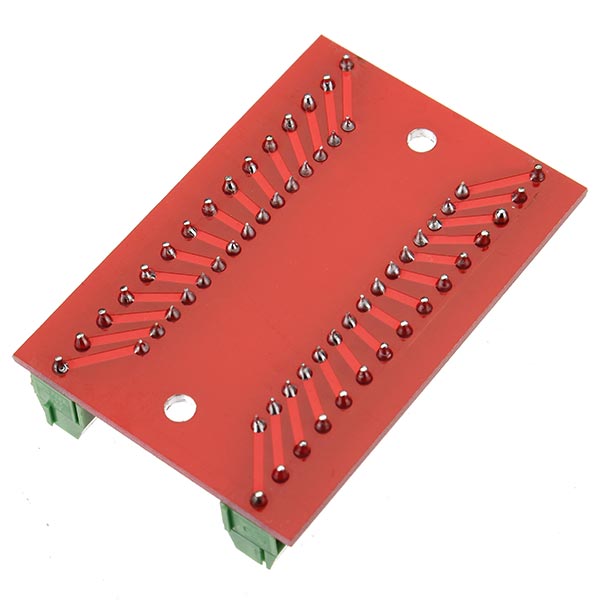

This is a small simple arduino Nano extension board, it will be the Nano all pins of derivation, convenient connection and we do the experiment

ATmega328P Nano V3 Improved Version

Change the USB chip, improve the download speed and stability of WIN7/WIN8
Note: Need to install CH341SER driver, here is the link: http://wch.cn/download/CH341SER_ZIP.html

Microcontroller Atmel ATmega328
Operating Voltage (logic level): 5V
Input Voltage (recommended): 7V ~ 12V
Input Voltage (limits): 6V ~ 20 V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40mA
Flash Memory: 32KB (ATmega328) (of which 2 KB used by bootloader)
SRAM: 2KB (ATmega328)
EEPROM: 1KB (ATmega328)
Clock Speed: 16MHz

Package included:

1 x Arduino Compatible Improved Version Nano V3.0 with USB cable
1 x NANO IO Shield Expansion Board
