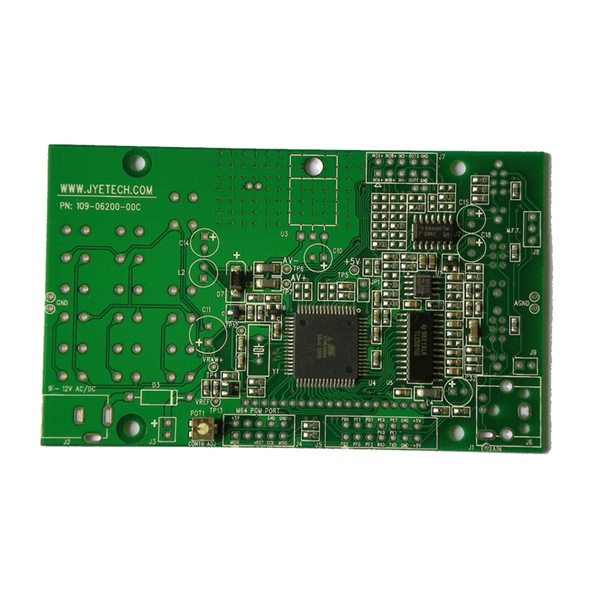

Orignal JYE Tech DIY Digital Oscilloscope Kit DSO062 DIY Kit

Maximum equivalent-time sampling rate (repetitive signal) – 20MSa / s

Maximum real-time sampling rate – 2MSa / s

Resolution – 8 bits

Record length – 256 bytes

Analog bandwidth – 1MHz

Vertical sensitivity – 100mV / Div – 5V / Div

Vertical position adjustable with indicator

Input impedance – 1M ohm

Max input voltage – 50Vpk (1x probe) [500Vpk for 10x probe]

DC / AC / GND coupling

Horizontal – 0.5us / Div – 10m (minute) / Div

Auto / Normal / Single trig modes

Rising / Falling edge trigger

External trig available

Trigger output is available, which makes it possible to cascade scopes to do multi-channel capture.

Trigger level adjustable with indicator

Hold / run feature

Save / recall up to 6 captures

FFT function available – size of 256 points and 512 points selectable, sampling rate of 1Ksps to 2Msps selectable

Transfer screen to PC as bitmap file via serial connection

Built-in 500Hz / 5Vpp test signal

Frequency Meter (For TTL level input signal)

Auto switching between Oscilloscope Mode and Frequency Meter Mode

9V DC power supply

Dimension: 110mm X 65mm X 25mm (without case)

Document: Click here          Click me!!! Click me!!!

Package included:

1 x DIY Digital Oscilloscope Kit DSO062 DIY Kit
