Proto Shield V3 + Mega2560 R3 ATmega2560-16AU Kit For Arduino

Beskrivelse

Proto Shield V3 + Mega2560 R3 ATmega2560-16AU Kit For Arduino

Proto Shield V3:

Wide prototyping area
Seamlessly plugged into the Arduino MEGA
Arduino pinout
Reset button
Indicator of power and status
Solder components directly
ICSP connector
14 pin SMD footprint (50 mils pitch)
20 pin Through Hole footprint (100 mils pitch)

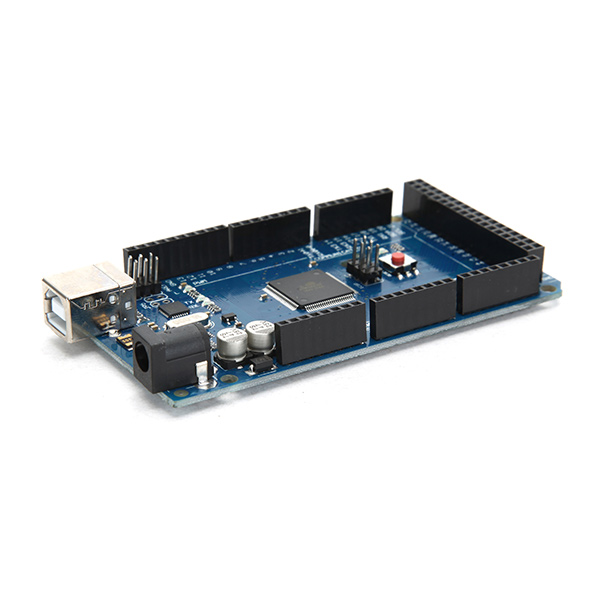

Mega 2560:

Microcontroller: ATmega2560
Operating voltage: 5V
Input voltage (recommended): 7-12V
Input voltage (limits): 6-20V
Digital I / O pins: 54 (of which 14 provide PWM output)
Analog input pins: 16
DC current per I / O pin: 40 mA
DC current for 3.3V Pin: 50 mA
Flash Memory: 256 KB of which 4 KB used by bootloader
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16MHz

Package included:

1 x Mega 2560
1 x Proto Shield V3
