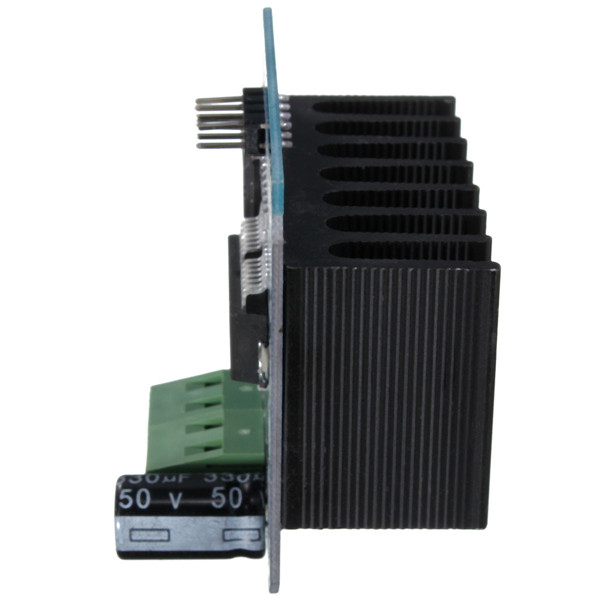

Semiconductor BTS7960B Motor Driver 43A H-Bridge Drive PWM For Arduino

Beskrivelse

Semiconductor BTS7960B Motor Driver 43A H-Bridge Drive PWM For Arduino

Specification:

Double BTS7960 large current (43 A) H bridge driver;
5V isolate with MCU, and effectively protect MCU;
5V power indicator on board;
voltage indication of motor driver output end;
can solder heat sink;
Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
isolation chip 5 V power supply (can share with MCU 5 V);
Size: 5.5 * 5 * 4 cm(L*W*H)
Weight:67g
Able to reverse the motor forward, two PWM input frequency up to 25kHZ;
two heat flow passing through an error signal output;
isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
the supply voltage 5.5V to 27V

Package Included:

1 x Motor Drive For Arduino
