SIM900 GSM/GPRS ICOMSAT V1.1 Expansion Module Board For Arduino

Description

SIM900 GSM/GPRS ICOMSAT V1.1 Expansion Module Board For Arduino With Antenna

Description:

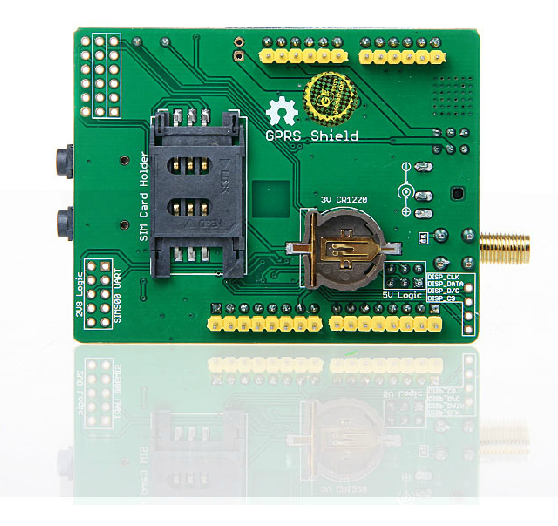

This is a GSM/GPRS shield for Arduino and based on  the SIM900 Quad-band GSM/GPRS module. It is controlled via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands), and fully compatible with Arduino / Iteaduino and Mega.

Features:

Quad-Band 850/ 900/ 1800/ 1900 MHz
GPRS multi-slot class 10/8
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @850/ 900 MHz)
Class 1 (1 W @ 1800/1900MHz)
Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
Low power consumption: 1.5mA(sleep mode)
Operation temperature: -40°C to +85 °C

Specification:

PCB size: 71.4mm X 66.0mm X 1.6mm
Indicators: PWR, status LED, net status LED
Power supply: 9~20V, compatible with Arduino
Communication Protocol: UART
RoSH: Yes

Electrical Characteristics:

Logic power supply Votlage: DC 5V (4.5-5.5V)
Power Voltage(Vsupply) : 9-20V
Baud rate:9600
Current Consumption(pulse) : 2000ma
Current Consumption(Continues) :500ma

Package included:

1 x ICOMSAT V1.1 Expansion Module Board
