1.3 Inch 128×64 SPI Serial OLED LCD Display Screen Module For Arduino UNO R3

Varenummer (SKU): 1064441 Kategorier: Arduino SCM, Module Board

Share this:

  • Facebook
  • Print
  • Beskrivelse
  • Yderligere information

Beskrivelse

1.3 Inch 128×64 SPI Serial OLED LCD Display Screen Module For Arduino UNO R3

Specifications:


1. Needn’t back light for the display unit can self-luminous
2. High resolution:128*64
3. Viewing angle:>160
4. OLED screens inside the driver chips : SSH1106
5. Supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
6. Ultra-low power consumption:full screen lit 0.08w
7. Voltage: DC 3V-5V
8. Work temp : -30°C-70°C
9. Spi interface
10. The color of word : blue

Pin Description:

1. GND: Power ground
2. VDD: 2.8-5.5V power supply
3. SCK: CLK clock
4. SDA: MOSI data
5. RES: Reset
6. DC: data / command
7. CS: chip-select signal

Package included:


1 x OLED Display Module For Arduino

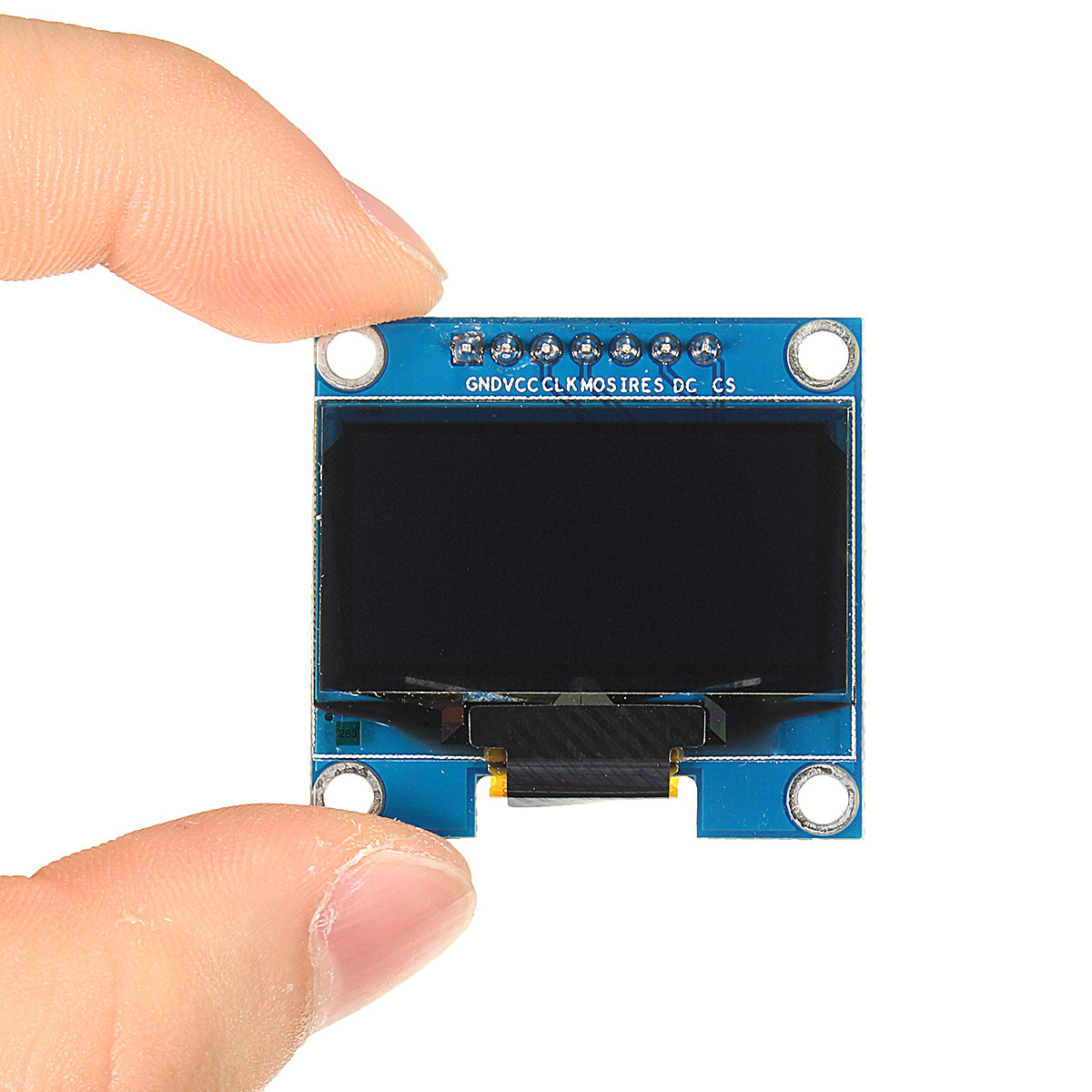

7ed14987-5bb7-4fd2-9ccf-60bceaa1d7a2 1.3 Inch 128x64 SPI Serial OLED LCD Display Screen Module For Arduino UNO R3

4047f1dd-5542-4485-adc3-b6395dc24006 1.3 Inch 128x64 SPI Serial OLED LCD Display Screen Module For Arduino UNO R3

f8acad55-ebde-4167-a6c7-032c79639e9f 1.3 Inch 128x64 SPI Serial OLED LCD Display Screen Module For Arduino UNO R3

Yderligere information

Vægt 0.007 g
