Resolution: 128*64 Control chip: SSH1106 Display area: 29.42 x 14.7mm Driving voltage: 3.3-5V Operating temperature: -40 ℃ to 70 ℃ Interface type: IIC interface
Pin definitions:
1> GND (power ground) 2> VCC (positive power supply) 3> CLK (clock) 4> MOSI (data line) 5> RES (reset) 6> DC (data/command)
About control chip SSH1106:
SSG1106 compatible with SSD1306 basic, difference is that SSH1106 control chip RAM space is 132*64, while SSD1306 space is 128*64. The 1.3-inch OLED 128*64 dot matrix, so in the middle of the screen production took 128 row. When using SSD1306 program point SSH1106 screen, only need to change address to 0x02 row to compatible.
1.3 Inch 6Pin 12864 IIC I2C Interface Blue OLED LCD Display Module For Arduino
Beskrivelse

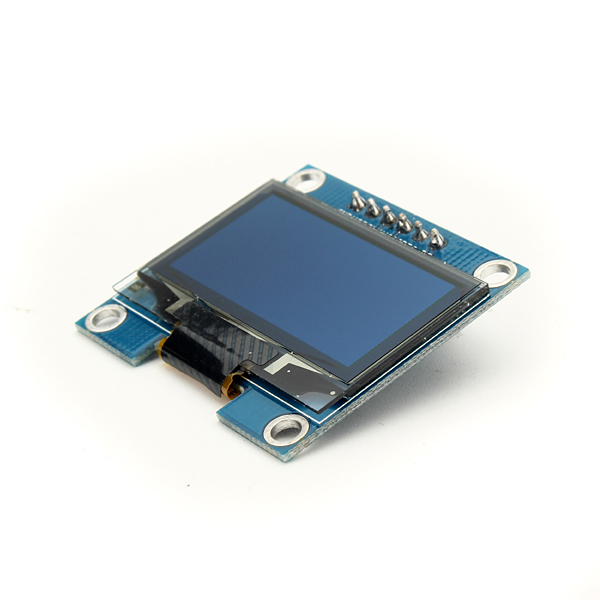

1.3 Inch 6Pin Blue OLED LCD Display 12864 IIC I2C Interface Module For Arduino
File download: Click to open
Feature:
Resolution: 128*64
Control chip: SSH1106
Display area: 29.42 x 14.7mm
Driving voltage: 3.3-5V
Operating temperature: -40 ℃ to 70 ℃
Interface type: IIC interface
Pin definitions:
1> GND (power ground)
2> VCC (positive power supply)
3> CLK (clock)
4> MOSI (data line)
5> RES (reset)
6> DC (data/command)
About control chip SSH1106:
SSG1106 compatible with SSD1306 basic, difference is that SSH1106 control chip RAM space is 132*64, while SSD1306 space is 128*64.
The 1.3-inch OLED 128*64 dot matrix, so in the middle of the screen production took 128 row. When using SSD1306 program point SSH1106 screen, only need to change address to 0x02 row to compatible.
Package includes:
1 x 1.3 Inch Blue OLED Module
