10Pcs 4 x 3 Matrix 12 Key Array Membrane Switch Keypad Keyboard For Arduino
Description:
Pad Size: 68.9 x 76 x 0.8mm Cable length: 85mm (include connector) Connector: dupont 7 pins, 0.1 inch (2.54mm) Pitch Mount style: Self-Adherence Max. circuit rating: 35VDC, 100mA Insulation spec.: 100M Ohm, 100V Dielectric withstand: 250Vrms (60Hz, 1min) Contact bounce: ≤5ms Life expectancy: 1 million closures Weight: 7g
Package included:
10 x 12 key membrane switch 4 x 3 Matrix Array
10Pcs 4×3 Matrix 12 Key Array Membrane Switch Keypad For Arduino
Share this:
Beskrivelse
10Pcs 4 x 3 Matrix 12 Key Array Membrane Switch Keypad Keyboard For Arduino
Description:
Pad Size: 68.9 x 76 x 0.8mm
Cable length: 85mm (include connector)

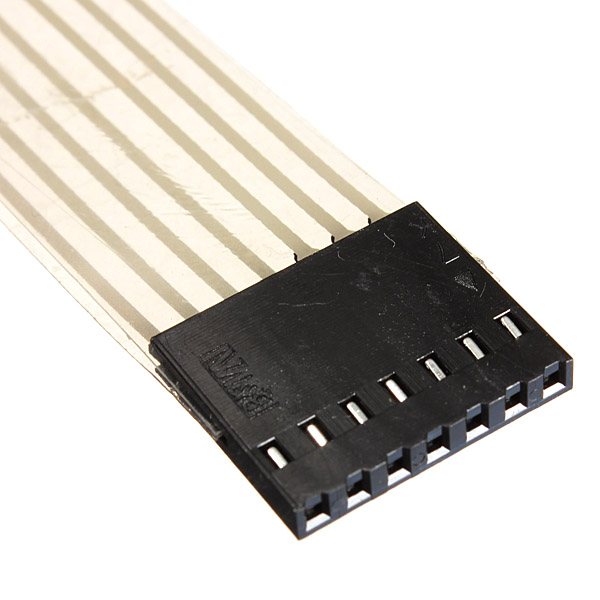

Connector: dupont 7 pins, 0.1 inch (2.54mm) Pitch
Mount style: Self-Adherence
Max. circuit rating: 35VDC, 100mA
Insulation spec.: 100M Ohm, 100V
Dielectric withstand: 250Vrms (60Hz, 1min)
Contact bounce: ≤5ms
Life expectancy: 1 million closures
Weight: 7g
Package included:
10 x 12 key membrane switch 4 x 3 Matrix Array
