Forside / Shop / Arduino SCM / Module Board / 10Pcs MQ-3 Alcohol Sensor Breath Gas Detection Module For Arduino

10Pcs MQ-3 Alcohol Sensor Breath Gas Detection Module For Arduino

Varenummer (SKU): 945894 Kategorier: 10pcs, Arduino SCM, Module Board

Share this:

  • Facebook
  • Print
  • Beskrivelse
  • Yderligere information

Beskrivelse

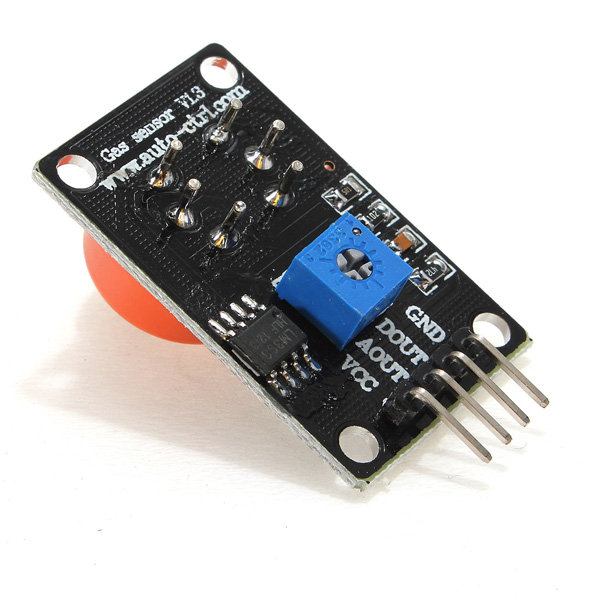

10Pcs MQ-3 Alcohol Sensor Breath Gas Detection Module For Arduino

Description:

The main chip: LM393, MQ-3 gas sensor
Operating voltage: DC3-5V
Response time: ≤10s (70% Response)
Recovery time: ≤30s (70% Response)
Heating resistance: 31Ω±3Ω
Heating Current: ≤180mA
Heating Voltage: 5V±0.2V
Heating Power: ≤900mW
detect Voltage: ≤15V
Ambient Temperature: -10℃ to 65℃,
Humidity: ≤95%RH
Storage conditions: Temperature:-20℃-70℃,Humidity:≤ 70%RH

Features:

Signal output instructions;
Dual signal output (analog output, and TTL level output);
TTL output valid signal is low, can be connected directly to the microcontroller;
0 ~ 5V analog output voltage, the higher the concentration the higher the voltage;
Has a high sensitivity and good selectivity to ethanol vapor;
Has a long life and reliable stability;
Rapid response recovery characteristics;

Applications:

For motor vehicle drivers and other non-drinking and operating personnel on-site testing, also used in other places of ethanol vapor detection, detection of alcohol: detection range of 10 to 1000ppm

Package included:

10 X Alcohol module

SKU091054a 10Pcs MQ-3 Alcohol Sensor Breath Gas Detection Module For Arduino

SKU091054b 10Pcs MQ-3 Alcohol Sensor Breath Gas Detection Module For Arduino

SKU091054c 10Pcs MQ-3 Alcohol Sensor Breath Gas Detection Module For Arduino

SKU091054d 10Pcs MQ-3 Alcohol Sensor Breath Gas Detection Module For Arduino

Yderligere information

Vægt 0.07 g
