12864 128 x 64 Graphic Symbol Font LCD Display Module Blue Backlight For Arduino

Description

12864 128 x 64 Graphic Symbol Font LCD Display Module Blue Backlight For Arduino

Feature:

With this 128 x 64 LCD Display Module, you can customize graphics, symbols, fonts by yourself.
Automatic power-on reset

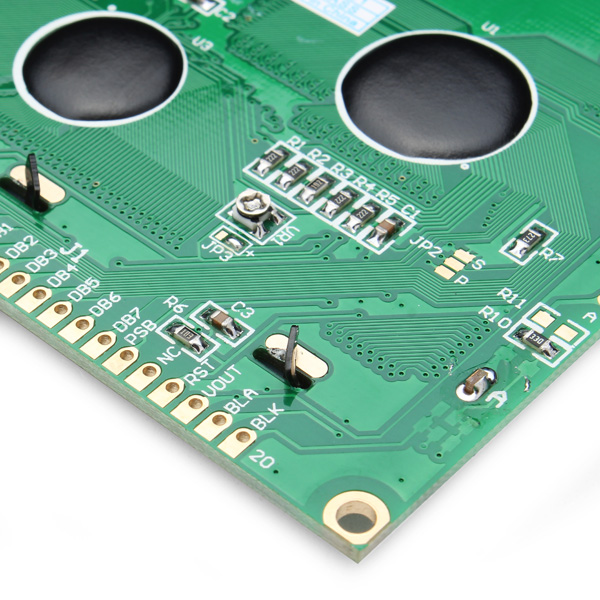

Interface definition:
PIN1: VSS
PIN2: VDD
PIN3 / PIN17: Adjustment of Contrast
PIN4 ~ PIN6: RS, R / W, E
PIN7 ~ PIN14: D0 ~ D7
PIN15: Serial / Parallel
PIN16: NULL
PIN18: Positive Backlight
PIN19: Negative Backlight

Specification:

VDD: ±3.0V ~ 5.5V
Clock rate: 2MHz
LCD type: blue(we have the yellow green one which SKU number is SKU117333)
Resolution: 128 x 64
Viewing angle: 6 O-Clock
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
View area: 70.0 x 38.8mm (L x W)
Dots size: 0.48 x 0.48mm (L x W)
Dots pitch: 0.52 x 0.52mm (L x W)
Size: 93.0 x 70.0 x 13.50mm (L x W x H)

Application:

Widely used in the punch card machines, Bus card machines, UnionPay machines, etc. more used in industrial equipment

Package included:

1 x 12864 128 x 64 LCD display module blue
