16 In 1 Sensor Module Kit Laser Ultrasonic Obstacle Avoidance For Raspberry Pi 2 Pi2 Pi3
We will default sending carton package to replace the plastic box, but there may some stocks are still packaging with plastic box, please note about this before you buy it.
No instructions offer.
KY-008 laser sensor module:
Operating voltage: 5V Specifications: 15 * 24 mm Light source wavelength: 650 nm Weight: 2.2 g
Obstacle avoidance sensor module:
VCC: 3.3V-5V external voltage (can be directly connected to the 5v and 3.3v microcontroller MCU) GND: External GND OUT: Small board digital output interface (0 and 1) Connection method: VCC-VCC; GND-GND; OUT-IO Board size: 3.2 x 1.4cm
Flame sensor module:
Operating voltage: 3.3V-5V Output form: DO digital switching output (0 and 1) and AO analog voltage output Size: 3.2cm x 1.4cm Detect flame or wavelength range (approx): 760 nm to 1100 nm, lighter flame test distance is 80cm, the greater flame, the farther test distance Detection angle is about 60 degree, particularly sensitive to flame photometry Adjustable sensitivity
315M wireless transceiver module:
Operating voltage: DC5V Quiescent current: 4Ma Receiving frequency: 315MHz Receiving sensitivity: -105DB Size: 30 x 14 x 7mm
Emission head parameters: Transmission distance: 20-200 meter (different voltage, different effect) Operating voltage: 3.5-12V Dimension: 19 x 19mm Work: AM Transfer rate: 4KB / S Transmitting power: 10mW Transmission frequency: 315M Pinout left → right: (DATA, VCC, GND)
One channel TCRT5000 tracing module:
Detection distance: about 10mm Operating voltage: 5V, black line output low level, white line output high level
Shock sensor module:
Operating voltage: 3.3V-5V Output type: Digital switching output (0 and 1) Small PCB board size: 3.2cm x 1.4cm
MQ-2 gas sensor module:
Dimension: 32 x 22 x 27mm (L x W x H) The main chip: LM393, ZYMQ-2 gas sensor Operating voltage: 5V DC Dual signal output (analog output, and TTL level output) TTL output valid signal is low level. (When the output low level signal light can be directly connected microcontroller) Analog output: 0 ~ 5V voltage, the higher the concentration the higher the voltage.
Sound sensor module:
Operating voltage: 3.3V-5V Small PCB board size: 3.4cm x 1.6cm
DHT11 temperature and humidity sensor module:
VDD: 3.3-5.5V DC DATA: Serial data NC: No connection GND: Grounding, negative power supply
HC-SR04 ultrasonic sensor module:
Operating voltage: 5V Ultra-small quiescent current: less than 2mA Induction angle: not more than 15 degrees Detection distance: 2cm-400cm High precision: up to 0.3cm
Package includes:
1 x DHT11 temperature and humidity sensor module 1 x HC-SR501 human infrared sensor module 1 x DS1302 real-time clock module with battery 1 x Rain sensor module 1 x Sound sensor module 1 x HC-SR04 ultrasonic sensor module 1 x Flame sensor module 1 x KY-008 laser sensor module 1 x Photoresistor sensor module 1 x YL-69 soil moisture sensor module 1 x Obstacle avoidance sensor module 1 x Shock sensor module 1 x MQ-2 gas sensor module 1 x 315M wireless transceiver module 1 x Tilt sensor module 1 x One channel TCRT5000 tracing module
16 In 1 Sensor Module Kit For Raspberry Pi 2 Pi2 Pi3
Description
16 In 1 Sensor Module Kit Laser Ultrasonic Obstacle Avoidance For Raspberry Pi 2 Pi2 Pi3
We will default sending carton package to replace the plastic box, but there may some stocks are still packaging with plastic box, please note about this before you buy it.
No instructions offer.
KY-008 laser sensor module:
Operating voltage: 5V
Specifications: 15 * 24 mm
Light source wavelength: 650 nm
Weight: 2.2 g
Obstacle avoidance sensor module:
VCC: 3.3V-5V external voltage (can be directly connected to the 5v and 3.3v microcontroller MCU)
GND: External GND
OUT: Small board digital output interface (0 and 1)
Connection method: VCC-VCC; GND-GND; OUT-IO
Board size: 3.2 x 1.4cm
Flame sensor module:
Operating voltage: 3.3V-5V
Output form: DO digital switching output (0 and 1) and AO analog voltage output
Size: 3.2cm x 1.4cm
Detect flame or wavelength range (approx): 760 nm to 1100 nm, lighter flame test distance is 80cm, the greater flame, the farther test distance
Detection angle is about 60 degree, particularly sensitive to flame photometry
Adjustable sensitivity
315M wireless transceiver module:
Operating voltage: DC5V
Quiescent current: 4Ma
Receiving frequency: 315MHz
Receiving sensitivity: -105DB
Size: 30 x 14 x 7mm
Emission head parameters:
Transmission distance: 20-200 meter (different voltage, different effect)
Operating voltage: 3.5-12V
Dimension: 19 x 19mm
Work: AM
Transfer rate: 4KB / S
Transmitting power: 10mW
Transmission frequency: 315M
Pinout left → right: (DATA, VCC, GND)
One channel TCRT5000 tracing module:
Detection distance: about 10mm
Operating voltage: 5V, black line output low level, white line output high level
Shock sensor module:
Operating voltage: 3.3V-5V
Output type: Digital switching output (0 and 1)
Small PCB board size: 3.2cm x 1.4cm
MQ-2 gas sensor module:
Dimension: 32 x 22 x 27mm (L x W x H)
The main chip: LM393, ZYMQ-2 gas sensor
Operating voltage: 5V DC
Dual signal output (analog output, and TTL level output)
TTL output valid signal is low level. (When the output low level signal light can be directly connected microcontroller)
Analog output: 0 ~ 5V voltage, the higher the concentration the higher the voltage.
Sound sensor module:
Operating voltage: 3.3V-5V
Small PCB board size: 3.4cm x 1.6cm
DHT11 temperature and humidity sensor module:
VDD: 3.3-5.5V DC
DATA: Serial data
NC: No connection
GND: Grounding, negative power supply
HC-SR04 ultrasonic sensor module:
Operating voltage: 5V
Ultra-small quiescent current: less than 2mA
Induction angle: not more than 15 degrees
Detection distance: 2cm-400cm
High precision: up to 0.3cm
Package includes:
1 x DHT11 temperature and humidity sensor module
1 x HC-SR501 human infrared sensor module
1 x DS1302 real-time clock module with battery
1 x Rain sensor module
1 x Sound sensor module
1 x HC-SR04 ultrasonic sensor module
1 x Flame sensor module
1 x KY-008 laser sensor module

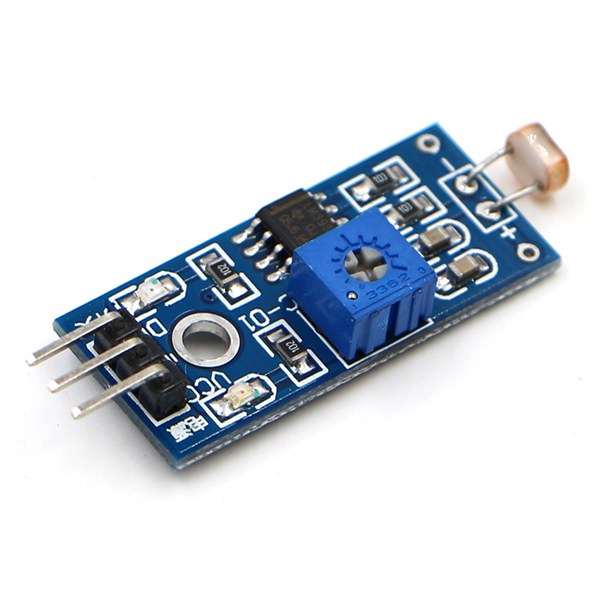

1 x Photoresistor sensor module
1 x YL-69 soil moisture sensor module
1 x Obstacle avoidance sensor module
1 x Shock sensor module
1 x MQ-2 gas sensor module
1 x 315M wireless transceiver module
1 x Tilt sensor module
1 x One channel TCRT5000 tracing module
