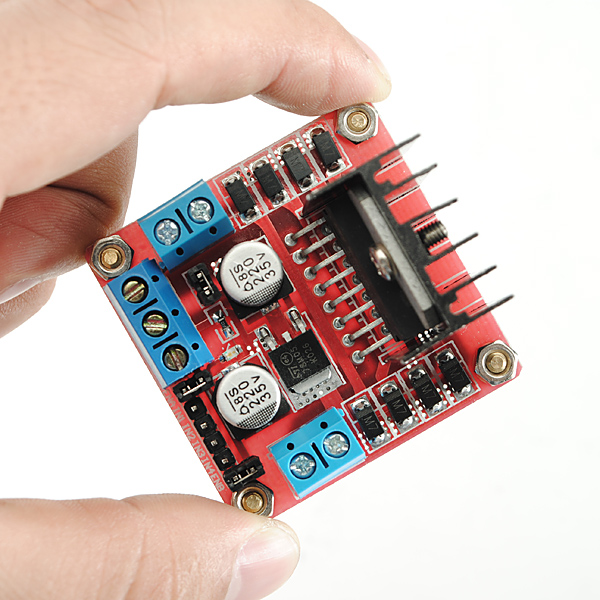

2Pcs L298N Dual H-Bridge Stepper Motor Driver Board For Arduino

Description

2Pcs L298N Dual H-Bridge Stepper Motor Driver Board For Arduino

Description:

Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Storage temperature: -20 to +135
Max power: 25W
Weight: 30g
Size: 43 x 43 x 27mm

Note:

This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.
When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN$ control OUT3 OUT4

Note:  Package is not included the screws.

Package included:

2 x  L298N Module
