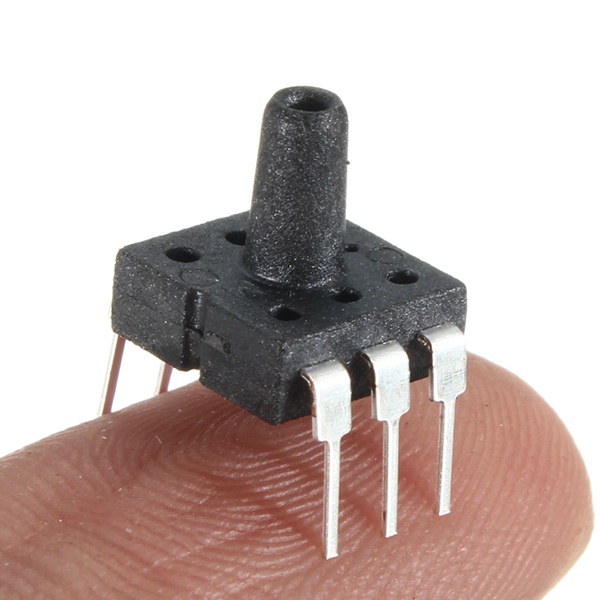

5Pcs DIP Air Pressure Sensor 0-40kPa DIP-6 For Arduino

Feature:


– This DIP air pressure sensor is suitable for biomedical, meteorology and other fields. The core part is pressure sensor chip which is make by the MEMS pressure technology.

– With wide applicable temperature range.

– Easy to use and install.

– Fits for the following types:

1. Automobile: tire pressure gauge, vehicle-mounted air pump, the MAP sensors, diagnostic equipment, automotive sensors.

2. Industry: air brake switch, portable pressure gauge, such as digital pressure gauge, environment monitor.

3. Medical equipment: patient monitoring and diagnostic equipment, such as blood pressure monitor, medical instrument, and monitor.



Specification:


– Measuring medium: air

– Measuring range: 0-40kPa

– Operating temperature range: -40 ℃ ~ + 125 ℃

– Storage Temperature: -40 ℃ ~ + 150 ℃

– Humidity: (50% ± 10%) RH

– Ambient temperature: (25 ± 1) ℃

– Medium temperature: (25 ± 1) ℃

– Output impedance: 4kΩ ~ 6kΩ

– Zero output: -15mV~+15mV

– Hysteresis: +-0.7%F.S.

– Power supply: ≤10V DC or ≤2.0mA DC

– Insulation resistance: 100MΩ, 100VDC



Package Includeed:


5 x DIP Air Pressure Sensor
