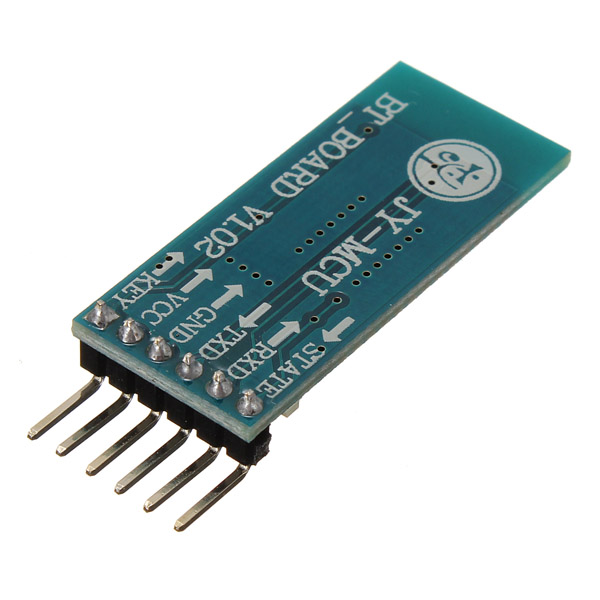

Arduino MEGA UNO Base Board Serial Transceiver Bluetooth Module

Description

Interface Board for Serial Bluetooth RF Transceiver Module is available now from our US and UK warehouse

Free shipping to US and UK in 3-6 business days
ship to Canada, Brazil in 7-10 days in US warehouse
ship to European countries in 7-10 days in UK warehouse

Arduino MEGA UNO Base Board Serial Transceiver Bluetooth Module

Description:

Size: 15.0mm(W)*40.1mm(L).
Works with any USB Bluetooth adapters.
Easy to use and completely encapsulated.
This module includes key interface and state interface compared with Smart Bluetooth Module Baseboard.
The Bluetooth Module Baseboard can be compatible with master mode,slave mode and both master-slave mode.
Works for Bluetooth TTL transceiver module which allows your target device to both send or receive the TTL data.
The key interface on the baseboard is the master mode button and can be controlled by high level from external MCU, then this module will search again automatically.
This module power supply input is 3.6~6V, Please be careful that it should be not more than 7V.
The STATE interface on the baseboard is interface for LED STATE output feet, when bluetooth module don't not connected with other device and then output pulse, when bluetooth module connected with other device and then output high level, and the MCU will judge the state, then this module will search again automatically.

Package Included:

1 x Interface Base Board Module
