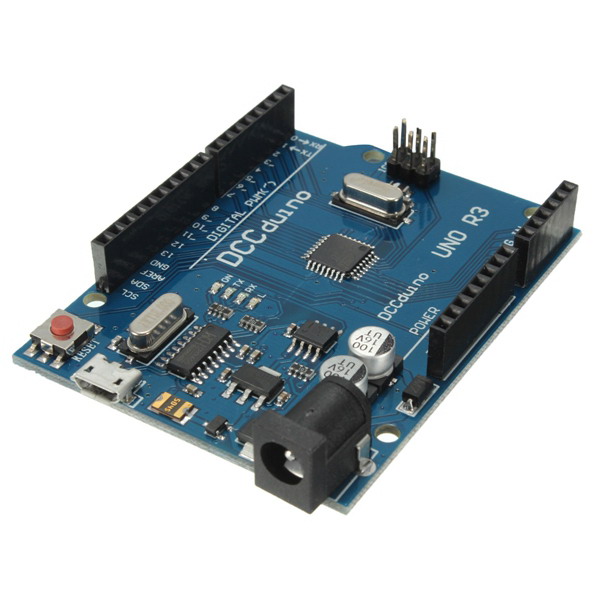

ATmega328P CH340G UNO R3 Development Module Board For Arduino

Description

ATmega328P CH340G UNO R3 Development Module Board For Arduino

Features:

This version is optimized in the original version to ensure consistent and compatible with the original, but also easy to use
Compatible with win7 and win8
Increase the pin socket, to facilitate the use of DuPont line
Replaced 16u2 By CH340
Digital I / O Digital Inputs/ Outputs: 0-13
Analog I / O Analog Input/ Output: 0-5
Support ISP download function
The Input Voltage: no external power supply when connected to the computer USB, external power supply: 5V-9V DC
Output Voltage: 3.3V and 5V DC voltage output
Using Atmel Atmega328 micro controller
Board Size: Approx. 7.2 x 5.3 x 1.5cm / 2.83 x 2.09 x 0.59 inch

How to use:

1. Download the IDE arduino
   Link: http://arduino.cc/en/Main/Software (Copy to open)
2. Download the USB chip driver
   Link: http://www.5v.ru/zip/ch341ser.zip (Copy to open)
3. Plug in UNO development board, the driver will be installed automatically
4. Select the UNO from the die
5. Select the COM port
6. The best choice first, arduino come with routine procedures, burn into it.

Note:
This version can not compatible with MAC computer.
Note: This is an unsolder and with no cable version.

Package included:

1 x ATmega328P CH340G Board with unsolder Female Header
