Bluetooth Tracked Smart Crawler Car Android Mobile Phone Control For Arduino

Description

Bluetooth Tracked Smart Crawler Car Android Mobile Phone Control For Arduino

Description:

New smart car for people interested in remote control cars, especially for mobile phone remote control car and DIY. The latest programmable Android bluetooth remote control tracked smart car. You can control it to forward, backward, turn left, turn right and so on through bluetooth. Controlled by the accelerometer or touch screen control, simple keys, two kinds of control mode. When controlled by accelerometer, it can also accelerate rapidly (Android mobile phone system version 2.3.7 above).

Feature:

Arduino compatible UNO

14 digital I/O pins (TX, RX, D2 ~ D13)
8 analog input pins (A0 ~ A7)
2 TTL serial pins (RX / TX)
6 PWM output (D3, D5, D6, D9, D10, D11)
Using Atmega328P and ATMEGA8U2
Clock speed: 16MHz
Support USB download and power
Support external DC 7V ~ 12V power
Support 9V battery power
Support ISP download
3 power supply USB, VIN, external 5V input

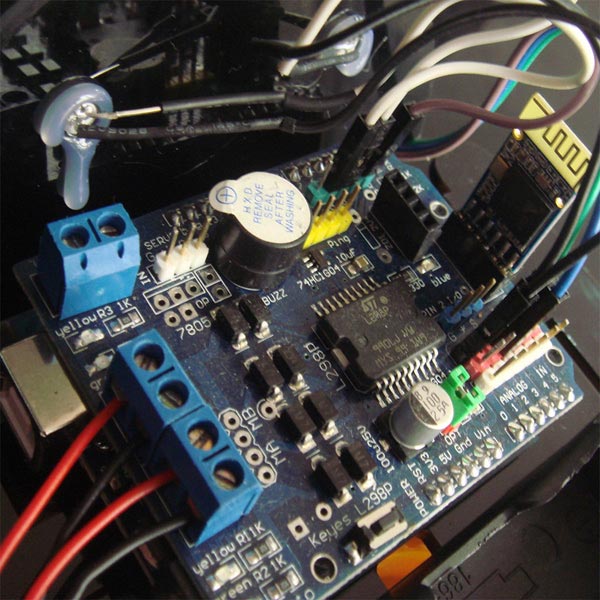

L298 Shield

On-board L298P motor driver chip
Use digital I/O pins directly without bother connection
On-board buzzer, can be used as alarm when back
Convenient motor interface, dual channel output
Two channel of bluetooth interface, used directly without cable
Lead out 7 digital pins (D2, D3, D5, D6, D7, D9, D13)
Lead out 6 analog pins (A0 ~ A5)
Indicator light when forward and back

Track car

Chassis size: 200 x 140 x 60mm
Rigid plastic shell
Soft leather apron wheel
Big moment of force
Good climbing ability

Power system

With two 1500mAh battery, do not need to worry about charging. Only if you get it work more than two hours continuously. Also with charger having protection circuit.

Package included:

1 x Tracked smart car body
1 x 3mm acrylic glass
1 x Arduino compatible UNO
1 x Arduino compatible L298 shield
1 x Bluetooth module
2 x 18650 battery 1500mA
1 x 18650 battery holder
1 x 18650 charger
1 x 3W high light LED module
2 x 7 color LED
1 x USB cable
20 x DuPont cable
4 x Copper cylinder
10 x Screws
10 x Nuts
