Output circuit and peripheral components NE555 multivibrator, the output waveform is a rectangular wave, by adjusting the duty cycle of the rectangular wave can form a square wave, and further processing by integrating the conversion circuit can form a variety of waveform output waveforms including square, bell, triangle wave and sine wave. The frequency of the output waveform of the circuit is about 1000Hz, waveform amplitude 0-200mv
Package included:

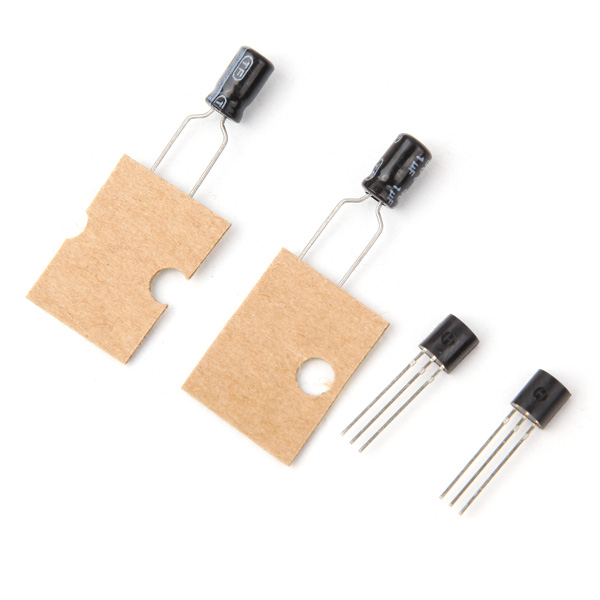

1 x DIY 555 Multi-wave Signal Generator Circuit Kit
DIY 555 Multi-wave Signal Generator Circuit Kit
Description
DIY 555 Multi-wave Signal Generator Circuit Kit
Description:
Output circuit and peripheral components NE555 multivibrator, the output waveform is a rectangular wave, by adjusting the duty cycle of the rectangular wave can form a square wave, and further processing by integrating the conversion circuit can form a variety of waveform output waveforms including square, bell, triangle wave and sine wave. The frequency of the output waveform of the circuit is about 1000Hz, waveform amplitude 0-200mv
Package included:
1 x DIY 555 Multi-wave Signal Generator Circuit Kit
