DIY Remote Control Butterfly Shape LED Flashing Kit

Description

DIY Remote Control Butterfly Shape LED Flashing Kit

The difference between no remote control type and the remote control type:

Note:

This kit does not provide source code, if you need, you can try to write it by yourself
This is a DIY kit, you need to have some knowledge of electronics and ability. We don't supply instruction for soldering, only supply schematic.
Two types for you to choose: Without remote control version/ With remote control version, please select the one you need.

The following describes the type of with remote control version, without remote control type can refer to:

Power on the board will automatically play 13 Music, at the same time there are 18 kinds of lighting effects with the rhythm of the music beat. (No remote control type does not play music but only flash LED).
Press the remote's number buttons "0-9" and "RPT" can select built-in music.
Power Key: Turn off all the lights and music (only blue LED light, which means the standby state)
Mute button: Press it can turn off the music, all the lights lit
EQ button: Lighting a small butterfly shaped + big butterfly shaped
U / SD button: Automatic flash big, medium and small butterfly shaped
EQ button: A small butterfly shaped lighting effects
VOL- button: Change the shape of lighting + (7 variations)
VOL + button: Change the shape of lighting – (7 variations)

Package includes:

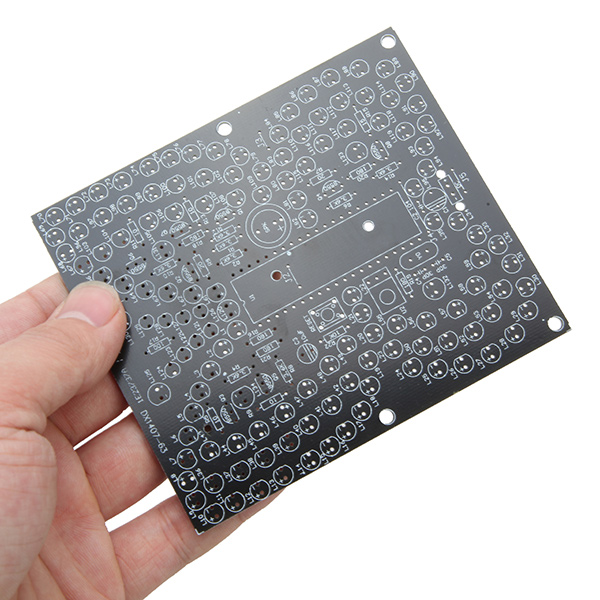

1 x LED Flashing Kit

Reference diagram:
