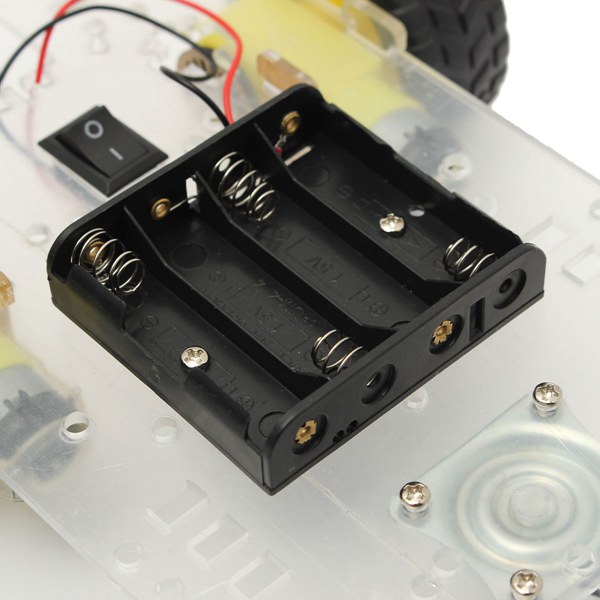

DIY Smart Motor Robot Car Chassis Battery Box Kit Speed Encoder For Arduino

DIY Smart Motor Robot Car Chassis Battery Box Kit Speed Encoder For Arduino

Varenummer (SKU): 1044541 Kategorier: ,

Beskrivelse

DIY Smart Motor Robot Car Chassis Battery Box Kit Speed Encoder For Arduino

Features:

Mechanical structure is simple, it is easy to install.
This car is the tachometer encoder.
Can be used for distance measurement, velocity.
Can use with other devices to realize function of tracing, obstacle avoidance, distance testing, speed testing, wireless remote control.

Download: www.uctronics.com/download/U3800.zip

Specification:

For Motor:

Voltage DC 3V DC6V DC 7.2V
Current 160mA 220mA 250mA
No-load Speed 120 rpm/min 200 rpm/min 250 rpm/min
Load Speed 100 rpm/min 175 rpm/min 210 rpm/min
Torque 0.45 kg.cm 1.0 kg.cm 1.5 kg.cm
Reduction Ratio 1:48
Noise ≤65dB
Motor Size 65mm x 18mm x 22mm(L*W*H)

For Smart Car:

Voltage 3~9V Drive Mode 2WD
Current 600mA Chassis Thickness 3mm
Load ≤2kg Car Weight 285g
Speed 0.6 m/s Car Size 220 x 175 x 65mm

Package includes:

1 x DIY robot car kit

Yderligere information

Vægt 0.284 g
