DIY USB Linear Voltage Regulator Multi-channel Output Power Supply Kit Step Up Dual Power

Beskrivelse

DIY USB Linear Voltage Regulator Multi-channel Output Power Supply Kit Step Up Dual Power

Feature:

– Single voltage wide range input, can connect to USB, with input current limiting protection.
– Multi-channel linear regulator dual output, which to meet most of the experiments required
– Small size, easy to use
– Input voltage: 5~18V DC
– Output voltage: +12V, -12V, +5V, -5V, +3.3V, +9V
– Output current: max 300mA (per channel)

Package incluede:

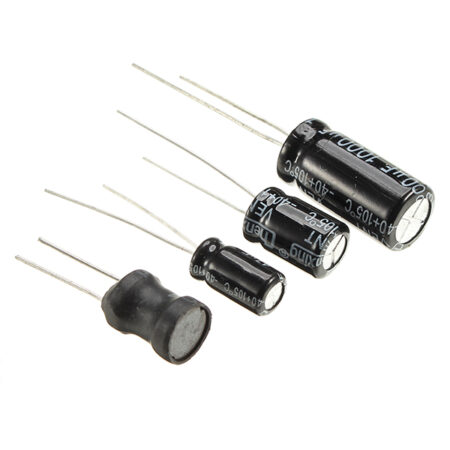

1 x Multi-channel Output Power Supply Kit

The input end connected to the 5V power adapter with USB cable, then tested the output voltage:

1. Output +9V ,and tested it, the accuracy is high.

2. Output +5V

3. Output -5V

4. Output -12V

4. Output +12V

Drived the 12V/200mA fan with 5V/1A mobile phone charger, and worked normally.

Used mobile phone charger whose output is 5V/1A to supply +5V, +12v, -12V voltage to the DDS waveform generator,
and it worked perfectly.
