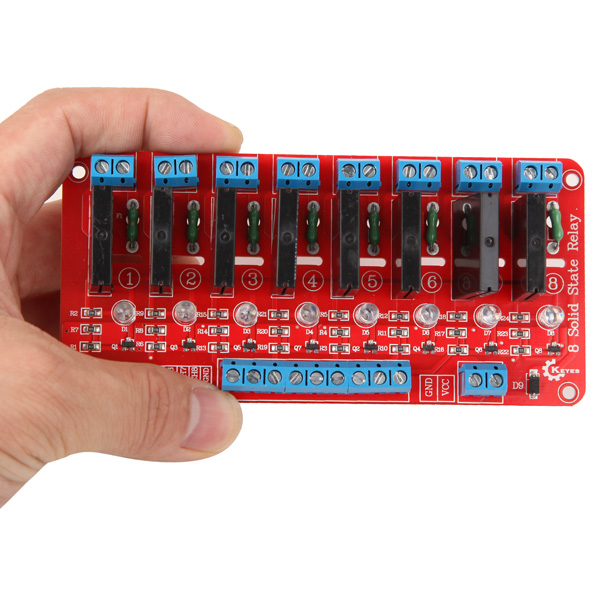

Eight Way Solid State Relay Module For Arduino

Eight Way Solid State Relay Module For Arduino

Varenummer (SKU): 979852 Kategorier: ,

Beskrivelse

Eight Way Solid State Relay Module For Arduino

Description:

5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
Input Power: 5VDC (160MA)
Control signal input voltage: (0-2.5V low state relay OFF ) (3-5V state high relay ON )
KF301 terminal connected to the control line is more convenient

Feature:

Voltage:5V
Quiescent current: 0 mA
Operating current:
                                1 WAY:13.8mA
                                2 WAY: 26.8mA
                                3 WAY: 37mA
                                4 WAY: 48mA
                                5 WAY: 59mA
                                6 WAY: 70mA
                                7 WAY: 81mA
                                8 WAY: 90mA
Trigger Voltage: 3.3-5V
Trigger current: 2mA

DC +: positive power supply (according to the relay voltage supply)
DC-: negative power supply
CH1: relay module signal triggering end (High trigger effective)
CH2: relay module signal triggering end (High trigger effective)
CH3: relay module signal triggering end (High trigger effective)
CH4: relay module signal triggering end (High trigger effective)
CH5: relay module signal triggering end (High trigger effective)
CH6: relay module signal triggering end (High trigger effective)
CH7: relay module signal triggering end (High trigger effective)
CH8: relay module signal triggering end (High trigger effective)

Package included:

1 x Eight Way Solid State Relay Module For Arduino

Yderligere information

Vægt 0.09 g
