ESP8266 Serial Wi-Fi Wireless ESP-01 Adapter Module 3.3V 5V Compatible For Arduino

ESP8266 Serial Wi-Fi Wireless ESP-01 Adapter Module 3.3V 5V Compatible For Arduino

Varenummer (SKU): 1047322 Kategorier: ,

Beskrivelse

ESP8266 Serial Wi-Fi Wireless ESP-01 Adapter Module 3.3V 5V Compatible For Arduino

Description:

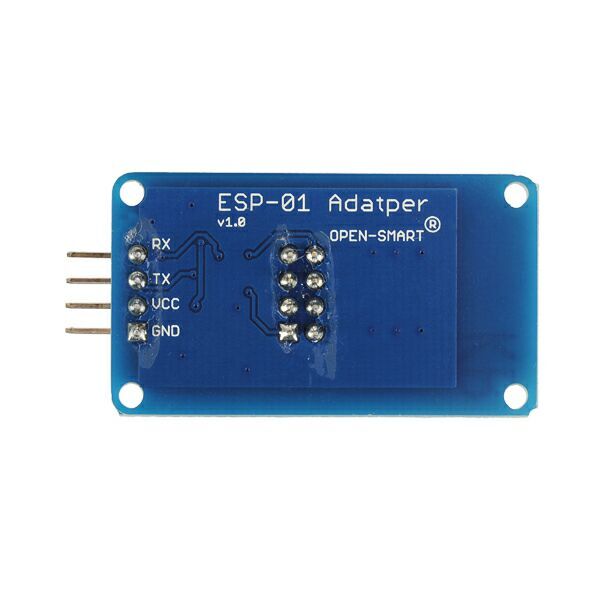

A adapter module for ESP-01 Wi-Fi module. 3.3V voltage regulator circuit and onboard level conversion circuit can make 5V microcontroller easy to use with ESP-01 Wi-Fi module.
Also, the item can be used with Arduino UNO R3 or compatible board.

Here is schenmatic: http://img.banggood.com/file/products/20160408023336ESP-01%20Adapter%20module%20Schenmatic.pdf


Features:

Working voltage: 4.5~5.5V (On-board 3.3V LDO Regulator)
Working current: 0-240mA

Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit)

Note: The item can be used with item 947259, item 947259 is not included!

Package included:

1 x ESP-01 Adapter module

Yderligere information

Vægt 0.006 g
