L293D Motor Drive Shield + Mega2560 Module Board Kit For Arduino Mega

Beskrivelse

L293D Motor Drive Shield + Mega2560 Module Board Kit For Arduino Mega

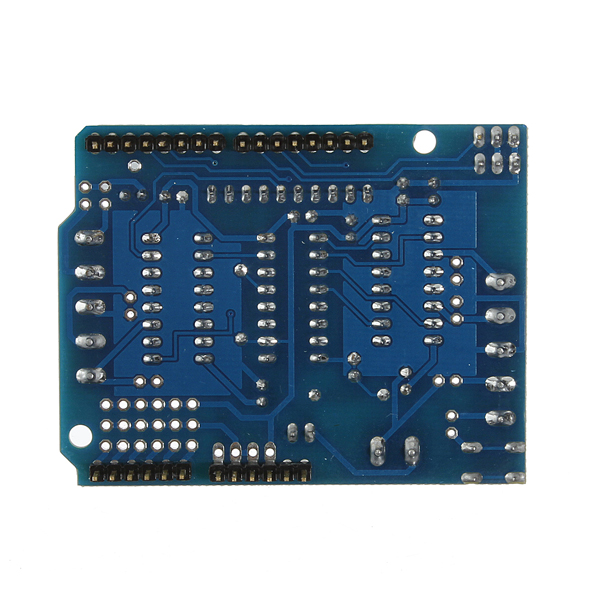

L293D Motor Drive Shield:

2 interface for 5V Servo connected to the Arduino's high-resolution dedicated timer – no jitter
Can drive 4 DC motors or 2 stepper motors or 2 Servo
Up to 4 bi-directional DC motors with individual 8-bit speed selection
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
Pull down resistors keep motors disabled during power-up
Reset button
2 external terminal power interface, for seperate logic / motor supplies
Tested compatible for Arduino Mega, Diecimila & Duemilanove
Size: 6.8 x 5.3 x 2cm

Mega 2560:

Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage(recommended): 7V ~ 12V
Input Voltage(limits): 6V ~ 20V
Digital I/O Pins: 54 ( of which 14 provide PWM output )
Analog Input Pins: 16
DC Current per I/O Pin: 40mA
AC Current for 3.3V Pin: 50mA
Flash Memory: 256KB ( of which 4KB used by bootloader )
SRAM: 8KB
EEPROM: 4KB
Clock Speed: 16MHz

Package included:

1 x Mega 2560 with cable
1 x L293D Motor Drive Shield
