L298N Dual H Bridge Stepper Motor Driver Board For Arduino

SKU: 42826 Categories: ,

Description

DC Drive Controller Board is available now from our US and UK warehouse

Free shipping to US and UK in 3-6 business days
ship to Canada, Brazil in 7-10 days in US warehouse
ship to European countries in 7-10 days in UK warehouse

Description:
Double H bridge drive
Chip: L298N (ST NEW)
Logical voltage: 5V
Drive voltage: 5V-35V
Logical current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Storage temperature: -20 to +135
Max power: 25W
Weight: 30g
Size: 43 x 43 x 27mm

Note:
This module has a built-in 5v power supply, when the driving voltage is 7v-35v, this supply is suitable for power supply, DO NOT input voltage to +5v supply interface, however ledding out 5v for external use is available.

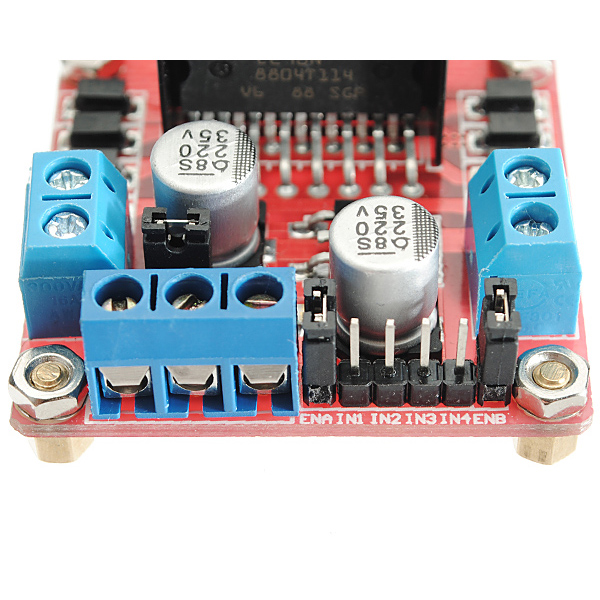

When ENA enable IN1 IN2 control OUT1 OUT2
When ENB enable IN3 IN$ control OUT3 OUT4

Note:  Package is not included the screws.

Package included:
1 x 236 L298N Dual H Bridge DC Stepper Motor Drive Controller Board Module arduino


Additional information

Weight 0.033 g
