L298P Dual Channel Bluetooth Interface High Power H Bridge Motor Driver Shield For Arduino Support Directly Driving 2 DC Motor

Description

L298P Dual Channel Bluetooth Interface High Power H Bridge Motor Driver Shield For Arduino Support Directly Driving 2 DC Motor

Description:

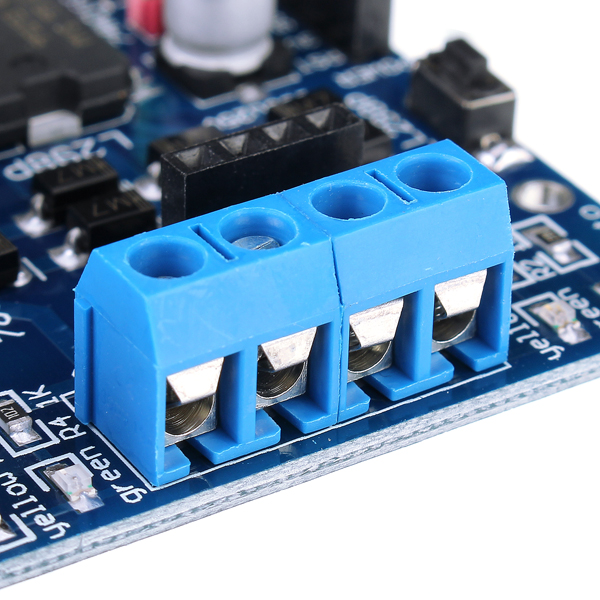

Shield L298P DC motor driver uses a high power motor driver chip L298P, can directly drive 2 DC motor, drive current up to 2A, the output terminal of the motor uses 8 high speed Schottky diode as protection, can be directly inserted to the Arduino.

L298P Shield DC motor driver has PWM speed control mode. Its power can be input by Arduino VIN or the wiring terminal of the driver, which can use jumper to switch.

Feature:

1. Onboard L298P motor drive chip, directly use the main board digital IO port (D10, D11, D12, D13), no complicated wiring.
2. Onboard buzzer (D4), you can set the backup alarm bell.
3. Convenient motor interface, can be divided into dual channel motor output.
4. Dual channel bluetooth interface, can be directly inserted, no need for wiring.
5. With 7 unoccupied the digital interface (D2, D3, D5, D6, D7, D8, D9).
6. Six analog interface (A0 ~ A5).
7. Indicator for forward, backup and turn around

Parameter:

1. Logic part input voltage: 5V DC
2. Drive part input voltage: VIN input 6.5 ~ 12V DC, PWRIN input 4.8 ~ 24V DC
3. Logic part working current: ≤36mA
4. Drive part working current: ≤2A
5. Maximum dissipation power: 25 W (T = 75 C)
6. Control signal input level: 2.3V≤VIN≤5V for high level, -0.3V≤VIN≤1.5V for low level
7. Working temperature: -25℃ ~ +130℃
8. Drive: dual channel bluetooth interface high power H bridge drive

Package included:

1 x Motor Drive Shield
