LCD Keypad Shield V2.0 LCD Expansion Board For Arduino

Description

LCD Keypad Shield V2.0 LCD Expansion Board For Arduino

Feature:

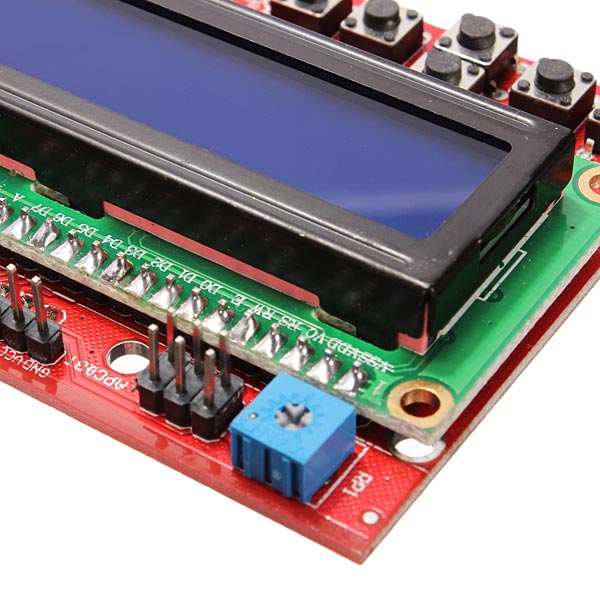

LCD Keypad Shield is a 2-line 16 character LCD display Arduino expansion boards. Extend several key input for the user as the LCD display menu selection buttons or the control buttons to use. An expansion board will allow you to interact with the Arduino device. We also extend Arduino Reset button, users can debugging the software. User by adjusting the blue potentiometer extension board can help you adjust the LCD screen contrast.
For Arduino beginners, do not need to worry about the cumbersome and complex LCD driver circuit connection, this LCD expansion board has simplify the circuit, you can directly plug this board into the Arduino Duemilanove or Uno controller, Arduino comes with the LCD library, a few simple lines of code will be able to complete the data and display characters.

Product application:

Boiler control board
Robot control board
Environmental monitoring equipment
Mechanical running condition monitoring

Occupancy figures port:

* PIN4-DB4
* PIN5-DB5
* PIN6-DB6
* PIN7-DB7
* PIN8-RS
* PIN9-E
* PIN10-Backlight control
* Analog 0 key port

Package included:

1 x LCD Keypad Shield V2.0
