SD card interface works with FAT16 or FAT32 formatted cards. 3.3V level shifter circuitry prevents damage to your SD card. Real time clock (RTC) keeps the time going even when the Arduino is unplugged. Included libraries and example code for both SD and RTC, means you can get going quickly. Prototyping area for soldering connectors, circuitry or sensors. Onboard 3.3V regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run. Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher. ADK/Mega R2 or lower are not supported.
Specification:
Size: 68 x 53 x 23mm (approx) Regulator voltage: 3.3V Battery: CR1220 3V

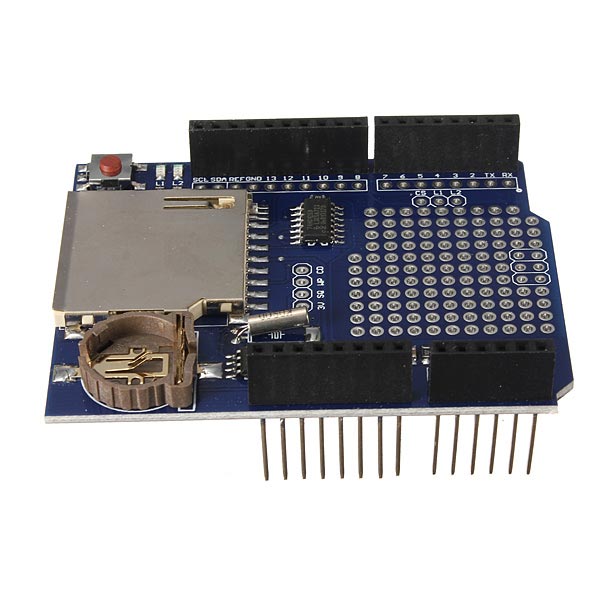

Logging Recorder Shield Data Logger Module For Arduino UNO SD Card
Description
Features:
SD card interface works with FAT16 or FAT32 formatted cards.
3.3V level shifter circuitry prevents damage to your SD card.
Real time clock (RTC) keeps the time going even when the Arduino is unplugged.
Included libraries and example code for both SD and RTC, means you can get going quickly.
Prototyping area for soldering connectors, circuitry or sensors.
Onboard 3.3V regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run.
Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher.
ADK/Mega R2 or lower are not supported.
Specification:
Size: 68 x 53 x 23mm (approx)
Regulator voltage: 3.3V
Battery: CR1220 3V
Note: This product has red and blue color, the color is random delivery.
File download: Click to open
Package included:
1 x Data logger module
1 x Lithium cell
Additional information
Related products
USB To ESP8266 Serial Adapter Wireless WIFI Develoment Board Transfer Module
HLK-RM04 Serial To WIfi / Ethernet Module
NodeMcu Lua WIFI Internet Things Development Board Based ESP8266 CP2102 Wireless Module

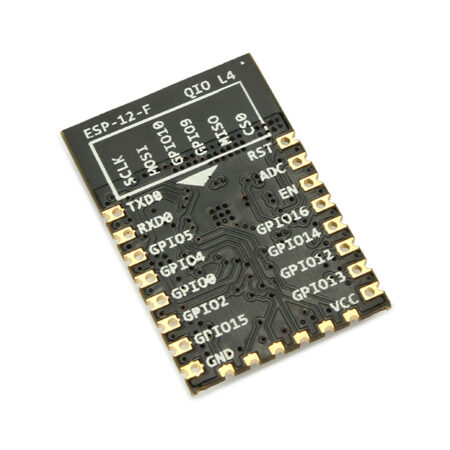

3Pcs Mini NodeMCU ESP8266 WIFI Development Board Based On ESP-12F
