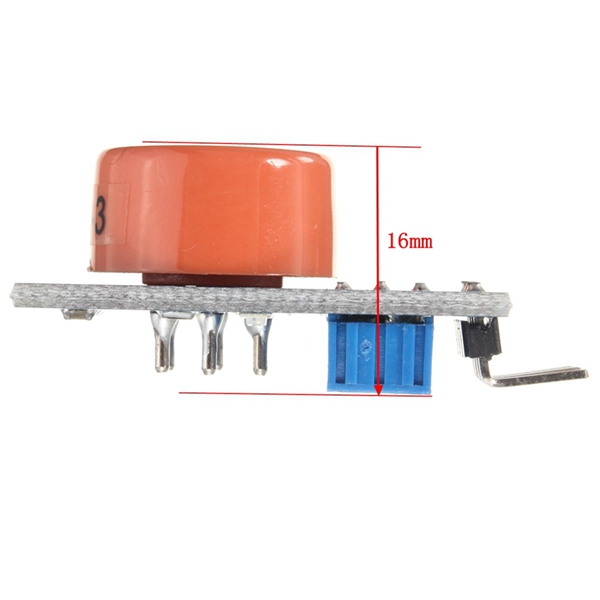

MQ-3 Alcohol Ethanol Sensor Breath Gas Detector Ethanol Detection For Arduino

Feature:


1. High quality double panel design, with power indicator and TTL output signal.

2. Have DO switch signal(TTL) output and AO analog signal output.

3. TTL output signal for low level effectively. (when the low output electric signal lights at ordinary times, can be directly connect single chip microcomputer or relay module)

4. Analog output voltage with concentration, the higher concentration, the higher voltage.

5. Has better sensitivity with the liquefied petroleum gas, natural gas, city gas, smoke.

6. Has long service life and reliable stability

7. Rapid response recovery features



Specification:


Input voltage: DC5V

Power consumption (current) : 150 mA

DO output: TTL digital 1 and 0 (0.1 and 5 V)

AO output: 0.1-0.3 V (pollution-free)

Highest concentration of voltage: Approx 4 V

Detection range of alcohol: detection range of 10 ~ 1000 PPM



Connection mode:


1. VCC: Positive (5 v)

2. GND: Connect power negative

3. DO: TTL switch signal output

4. AO: Analog signal output



Package Included:


1 X MQ-3 Alcohol Ethanol Sensor Model
