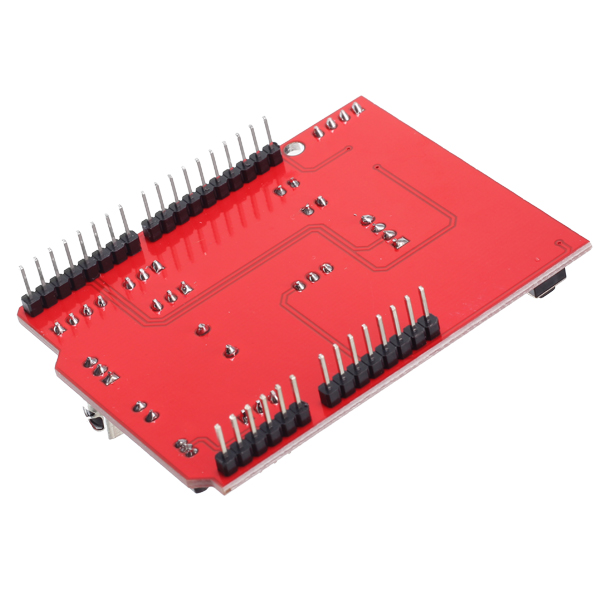

Multipurpose Shield V1 Solderless Learning Board Expansion Port For Arduino

Beskrivelse

Multipurpose Shield V1 Solderless Learning Board Expansion Port For Arduino

Description:

Multi-purpose Shield V1 is a learning board based on Arduino. No need for soldering and connection. Download the program directly to complete experiment. It is multi-purpose and we offer code library of all modules that have been tested. You can use them directly. We reserve a expansion port on the shield to help you to complete other experiment.

Features:

– Able to combine the shield with mainstream controller on the market,such as UNO R3 and MEGA2560
– Use 2-channel LED indicator light to show the working condition of program, convenient for program debugging
– 2-channel switch, support experiment external interrupt
– One reset button
– DHT11 temperature and humidity sensor module,  support temperature and humidity measuring experiment
– One rotary potentiometer,  support analog input
– Passive buzzer module to alarm or make sound
– Full-color LED light
– Photosensitive resistance to  detect the intensity of ligh t
– LM35D temperature sensor, support temperature measuring experiment
– Infrared receiver to detect infrared receiving function
– 2-channel digital quantity port (D7, D8)
– 1-channel analog quantity port (A3)
– One IIC interface
– One TTL serial port

Package included:

1 x Multipurpose Shield V1
