Orignal JYE Tech DIY FG085 DDS Digital Synthesis Function Generator Kit With Panel

SKU: 974906 Categories: ,

Description

Orignal JYE Tech DIY FG085 DDS Digital Synthesis Function Generator Kit With Panel

Feature:

If you have technical problem, please contact  jyetek@gmail.com , ONLY FOR technical problem

This kit not include the power supply !!!!!!!!!!
Note: This kit with panel, if you need no panel version, please search item:974905

The output signal types: sine, square, triangle, positive and negative sawtooth, positive and negative staircase, user-defined arbitrary waveforms, and servo control signal
Frequency range: 0 – 200KHz (sine)
Frequency resolution: 1Hz
Frequency accuracy: 0.149Hz (when F> 40Hz time), 0.000596Hz (when F <= 40Hz time)
Cycle Resolution: 1ms
Amplitude range: 0 – 10V pp
Amplitude accuracy: 0.1V
DC offset range: -5V – + 5V
DC offset Accuracy: 40mV
Waveform memory depth: 256 bytes
Maximum sample rate: 2.5Msps
Trigger Input Level: High 3.5V (minimum), low 1.5V (maximum)
When the trigger waveform output delay: less than 5 subtle
Synchronous output: TTL level
Output Impedance: 50 ohm
Power supply voltage: 15V DC
Supply Current: <150mA (no load)

Example:

1) The output frequency is set to 5KHz, key operation: [F / T] [5] [KHz]
2) the output amplitude is set to 3V peak to peak, key operation: [AMP] [3] [V]
3) The DC offset is set to -2.5V, key operation: [OFS] [+/-] [2] [5] [V] [.]

The main operating modes:

Fixed-frequency mode (CW)
Sweep mode (SWEEP)
Servo signal patterns (SERVO)

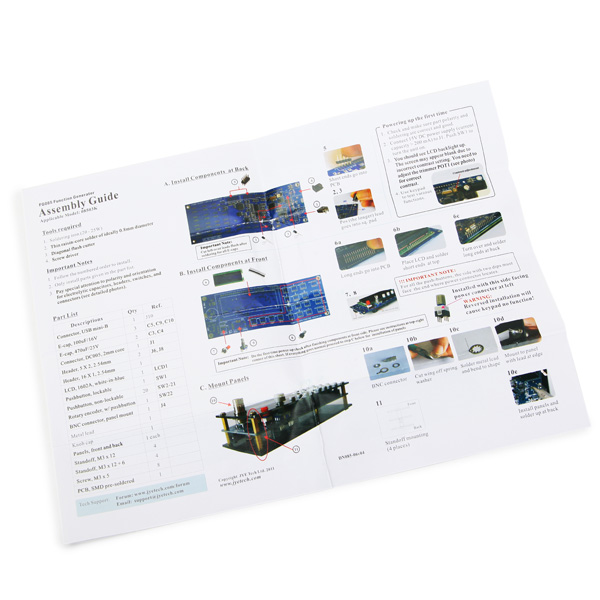

Please click here to download the Assembly Guide

Package included:

1 x FG085 DDS Digital Synthesis Function Generator Kit With Panel




Additional information

Weight 0.192 g
