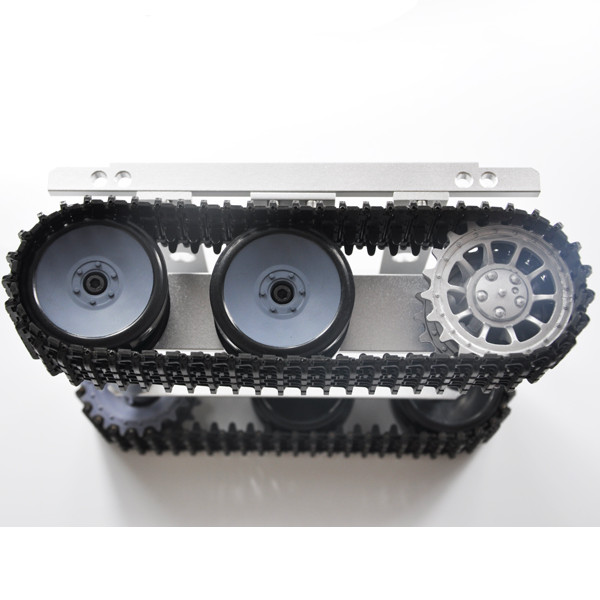

T100 DIY WIFI Smart Tank Chassis Intelligent Aluminum Robot Car For Arduino

Description

T100 DIY WIFI Smart Tank Chassis Intelligent Aluminum Robot Car For Arduino

Motor DataSheet for Tank/Car Chassis:
http://bbs.smartarduino.com/showthread.php?tid=2039

Chassis Installation

http://bbs.smartarduino.com/forumdisplay.php?fid=21

Feature:

Name: T100 smart tank chassis
Material: Aluminum
Oxidation: Yes
Color: Gold or silver (optional)
Track: Plastic
Size: about 200 x 190 x 80 (L x W x H)
Operating voltage: 9V-12V

Motor parameters:

Name: 25mm brushless DC motor (with Hall sensors code disk)
Output rate: 150 ± 10% rpm
Load current: 200mA (Max)
Stall current: 4500mA (max)
Stall Torque: 9.5kgNaN
Load speed: 100 ± 10% rpm
Load moment: 3000gNaN
Load current: 1200mA (Max)
Load noise: 56dB
Operating voltage: 9V
Shaft extension Dimensions: 14.5mm
Axial clearance: 0.05-0.50mm
Screw size: M3.0
Shaft: phi4mm, D3.5
Code disk parameters: two pulses / revolution

Package includes:

1 x Chassis bracket
1 x Track (pair)
2 x Driving wheels
4 x Wheel drive
1 x Motor (pair) (with encoder)
