ZVS Drive Board Kit Boost Voltage Generator Power Supply Induction Heating Module

Description

ZVS Drive Board Kit Boost Voltage Generator Power Supply Induction Heating Module

Feature:

Size: 74mm * 77.8mm
Input voltage: DC 12V-30V
Power requirement: Less than 12V≥5A, above 15V ≥15A
Operating frequency: 30kHz-50kHz adaptive
Secondary Parameters: 5T + 5T

About the length of the discharge arc: Input voltage 12v / 5A, the high voltage discharge arc distance is about 1-2 cm. The greater input voltage and current increases, the greater output power, the longer discharge arc distance, when input the maximum 30v / 10A, distance can up to above 5cm. If the arc is too short, please check the input power is sufficient.
About power: Power output circuit depends on your input power, if you only 30W power supply, even if you want to be a 200W zvs, is can not up to the output of 100w or 200W, so the input power must be adequate, power = voltage * current!

Note:
This is a DIY kit, you need to have some knowledge of electronics and ability.
This product does not provide instruction.

Package includes:

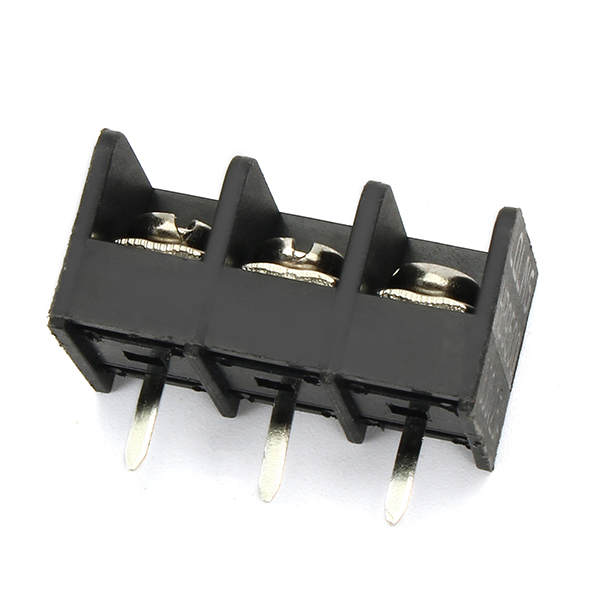

1 x ZVS Tesla Coil Drive Board Kit
